The TSS RF CORE 360 Platform reduces the time, cost, and risk of test automation—cutting development effort by up to 80% for faster, more reliable RF device validation. With its open architecture, plug‑and‑play modular design, and proven COTS instrumentation, CORE 360 delivers a powerful, flexible solution for even the most demanding RF test challenges

REQUEST A DEMODOWNLOAD BROCHURE
Test automation plays a critical role in the success of product development companies. Whether it’s a new product launch or the release of next-generation advances, you need automated test systems you can rely on.

Since 2004, Test System Solutions has been committed to providing state-of-the-art, cost-effective, modular automated test systems for every stage of the product lifecycle. Whether your requirements call for a turn-key test system, build-to-print integration service, or a build-to-spec test solution, our engineering team has the experience, training, and capacity to maximize productivity and success for your company. Whether you need one system or one thousand systems, Test System Solutions has a proven track record of delivering on time, every time.

We focus on the three pillars of automated test systems: Hardware, Software, and Data. Each pillar contributes to a complete automated test system, and using our standardization of these pillars can give your company a simple and more efficient solution. Our unique modular approach provides customers with the flexibility and agility to realize results faster and reduce duplication of effort.

I would like to personally invite you to join our group of satisfied customers. Thank you for considering Test System Solutions as your test automation partner. We look forward to serving you.

The CORE 360 Philosophy:
Performance + Flexibility

At TSS, our philosophy is simple — deliver high-performance test solutions without the cost, complexity, or limitations of closed proprietary systems. The CORE 360 Platform embodies this approach by combining cutting-edge performance with true flexibility, giving organizations the freedom to innovate, scale, and adapt faster than ever before.

With CORE 360, you don’t just get a test platform — you gain an open, modular ecosystem designed around your needs, built from reliable commercial components, and engineered for long-term value.

The CORE 360 Advantage:

  • Commercial, Off-the-Shelf (COTS) Components – Build your systems using best-in-class instruments from leading RF and testequipment manufacturers.
  • Reconfigurable Equipment – Adjust, expand, or repurpose your system as your products and requirements evolve.
  • Complete Openness – Integrate seamlessly with existing assets and software environments — no vendor lock-in, ever.
  • Lower Non-Recurring Engineering (NRE) – Accelerate deployment and reduce cost with pre-validated hardware and software building blocks.
  • Proven Reliability – Enjoy the confidence of industry-standard equipment, backed by manufacturer support and global availability.

The CORE 360 Philosophy is all about empowering test teams — giving you the freedom to choose, the power to scale, and the confidence to perform. Whether you’re developing next-generation RF technologies or scaling up production, CORE 360 ensures your test infrastructure accelerates innovation, not limits it.

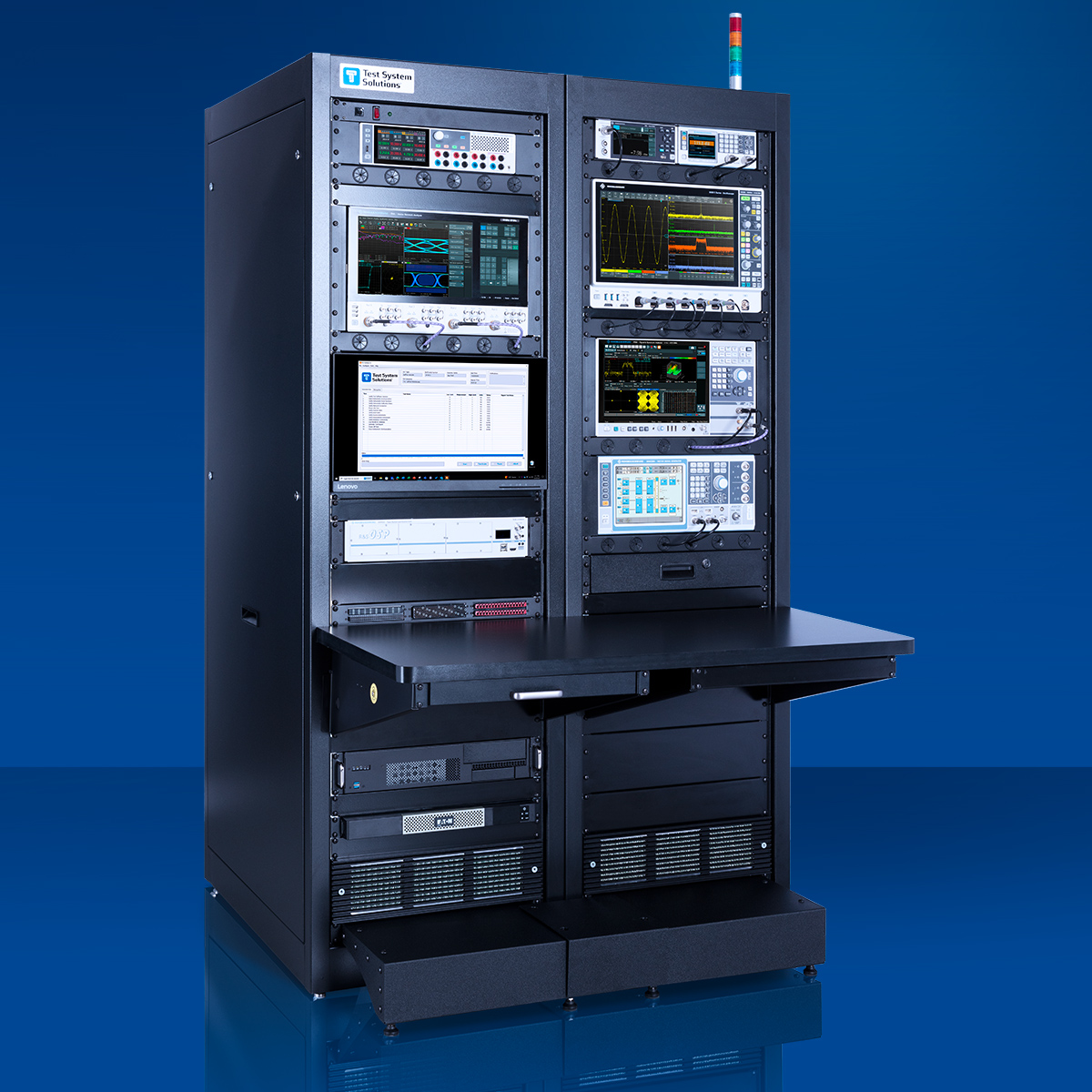

RF CORE 360 – DVT1

The RF CORE 360 – DVT1 is a comprehensive Development Validation Test (DVT) platform designed to accelerate and simplify the testing process for RF products. Built for maximum flexibility, the RF CORE 360 DVT1 combines a robust, modular infrastructure with scalable configurations that adapt seamlessly to your evolving needs.

Unlike traditional custom test setups that can take 12 to 36 months to develop, the RF CORE 360 DVT1 platform can be deployed in as little as12–16 weeks, giving engineering teams a significant head start.

Every DVT1 system is configured from a proven 80% baseline architecture, allowing the remaining 20% to be tailored to specific DUT requirements, instrumentation preferences, and performance specifications. As your testing needs grow, optional hardware and software packages can be integrated with minimal reconfiguration — protecting your investment and extending your system’s lifecycle.

Key Highlights:

  • Complete Superset Solution – Covers all major functions for RF development validation testing in a single platform.
  • Modular and Scalable – Choose from flexible configurations that expand effortlessly with your test requirements.
  • Rapid Deployment – Shave months off your typical automation development timeline.
  • Vendor-Neutral Architecture – Compatible with leading instrumentation providers such as Rohde & Schwarz, Keysight, and National Instruments (Emerson).
  • Future-Ready – Designed for continuous adaptability with optional upgrade packages and evolving software frameworks.

The RF CORE 360 – DVT1 isn’t just a test system — it’s a strategic test infrastructure built to evolve alongside your product roadmap, enabling faster, more efficient, and more reliable validation across every stage of development

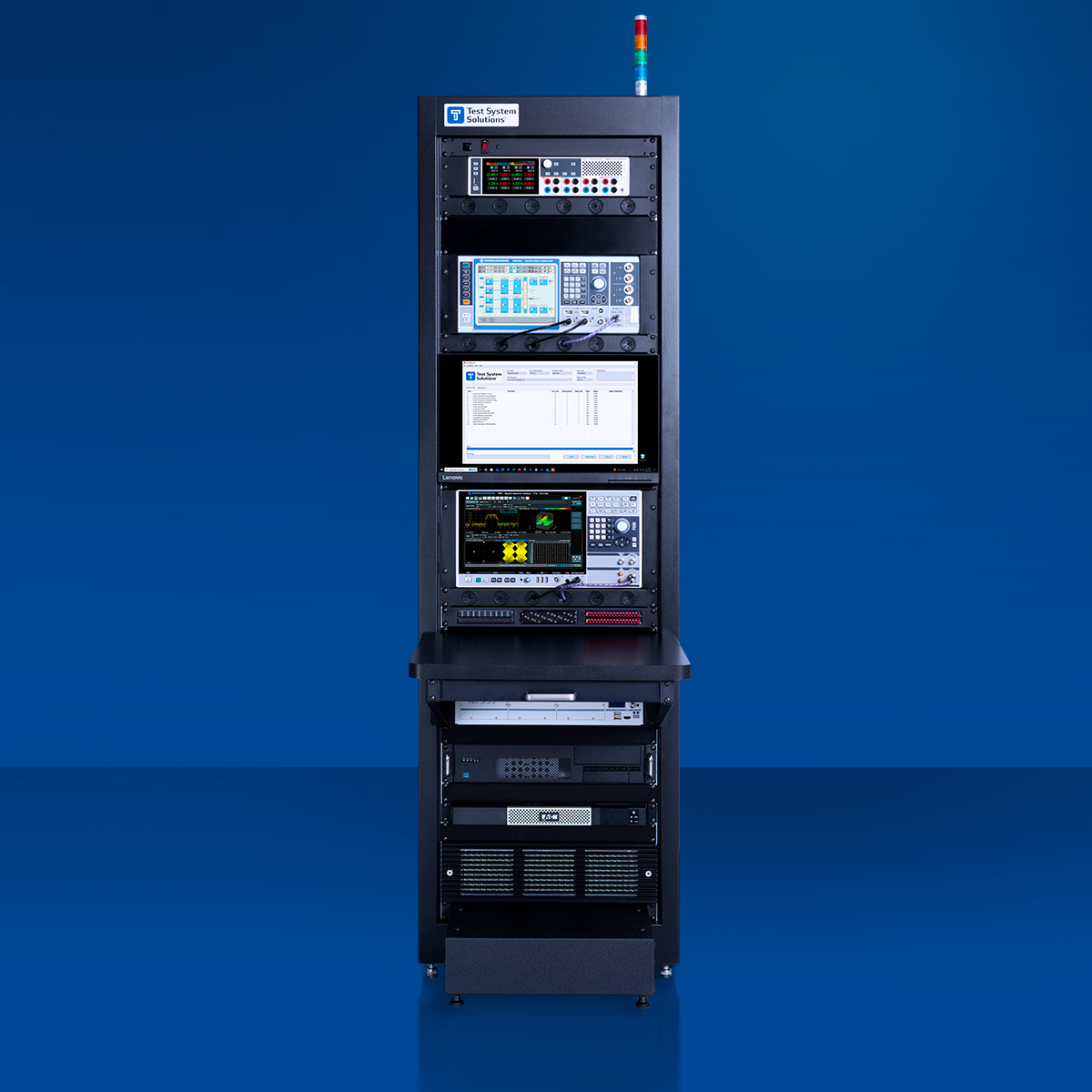

RF CORE 360 – PVT1

The RF CORE 360 – PVT1 is an optimized Production Validation Test (PVT) platform engineered for RF device testing at scale. Purpose-built around industry-standard Vector Signal Analyzer (VSA) and Vector Signal Generator (VSG) technologies, the PVT1 delivers the precision, speed, and reliability required for large-volume production environments —all in a cost-effective, modular package.

Designed as part of the CORE 360 Platform family, the PVT1 builds upon the same proven, scalable architecture that shortens test system deployment from 12–36 months down to just 12–16 weeks. This allows manufacturers to rapidly transition from development validation to production testing with minimal risk, consistent performance, and lower total cost of ownership.

Key Highlights:

  • Optimized for High-Volume Testing – Perfect for validating RF components, modules, and systems in production environments.
  • Rapid Deployment and Scalability – Leverages CORE 360’s configurable base to accelerate setup and expand capacity as production grows.
  • Cost-Effective Efficiency – Streamlines test workflows, reduces equipment overhead, and maximizes uptime per test station.
  • Vendor-Agnostic Flexibility – Compatible with leading instrumentation providers including Rohde & Schwarz, Keysight, and National Instruments (Emerson).
  • Built for Reliability – Designed to deliver consistent, repeatable results across long production cycles.

With the RF CORE 360 – PVT1, you can validate RF devices faster, smarter, and more economically — transforming your production test process into a scalable, data-driven advantage that supports increased throughput, higher quality, and faster time-to-market.

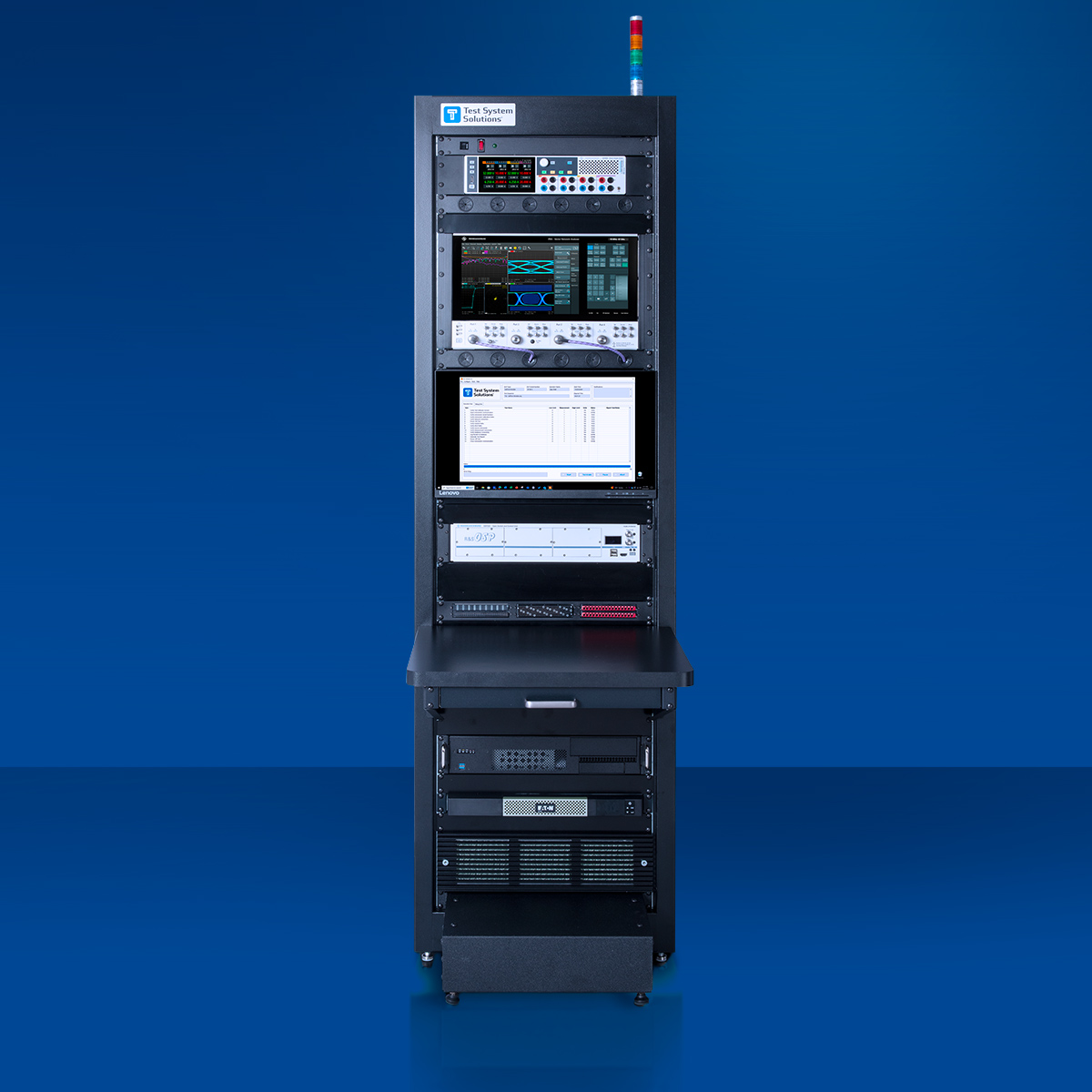

RF CORE 360 - PVT2

The RF CORE 360 – PVT2 is a production validation platform purpose-built for manufacturers and test teams looking to bridge the gap between design verification and high-volume production. Centered around a Vector Network Analyzer (VNA), the PVT2 delivers comprehensive RF device validation capabilities in a streamlined, cost-effective solution.

Engineered on the CORE 360 modular architecture, the PVT2 combines flexibility, scalability, and rapid deployment. It offers all the measurement capabilities required as products transition from the lab to the manufacturing floor. Designed for ease of integration, the RF CORE 360 – PVT2 eliminates the lengthy development cycles of traditional custom systems — reducing setup and deployment time from 12–36 months down to just 12–16 weeks. This enables faster ramp-up, greater manufacturing efficiency, and higher test throughput from day one.

Key Highlights:

  • Ideal for Transition Phases – Seamlessly supports the move from design validation (DVT) to production validation (PVT).
  • Rapid Deployment & Scalability – Based on the CORE 360 framework for quick setup and easy expansion.
  • Cost-Effective Performance – Delivers advanced test capability at a competitive price point.
  • Vendor-Neutral Compatibility – Works with instrumentation from Rohde & Schwarz, Keysight, and National Instruments (Emerson).
  • Reliable & Repeatable – Ensures measurement consistency across test stations and production cycles.

The RF CORE 360 – PVT2 empowers manufacturing teams to validate RF devices with lab-grade precision, production-grade reliability, and a total cost of ownership that makes sense. It’s the perfect choice for organizations ready to scale from design validation to production validation with confidence and speed.

RF CORE 360 Test Software

Smarter Software. Faster Results.

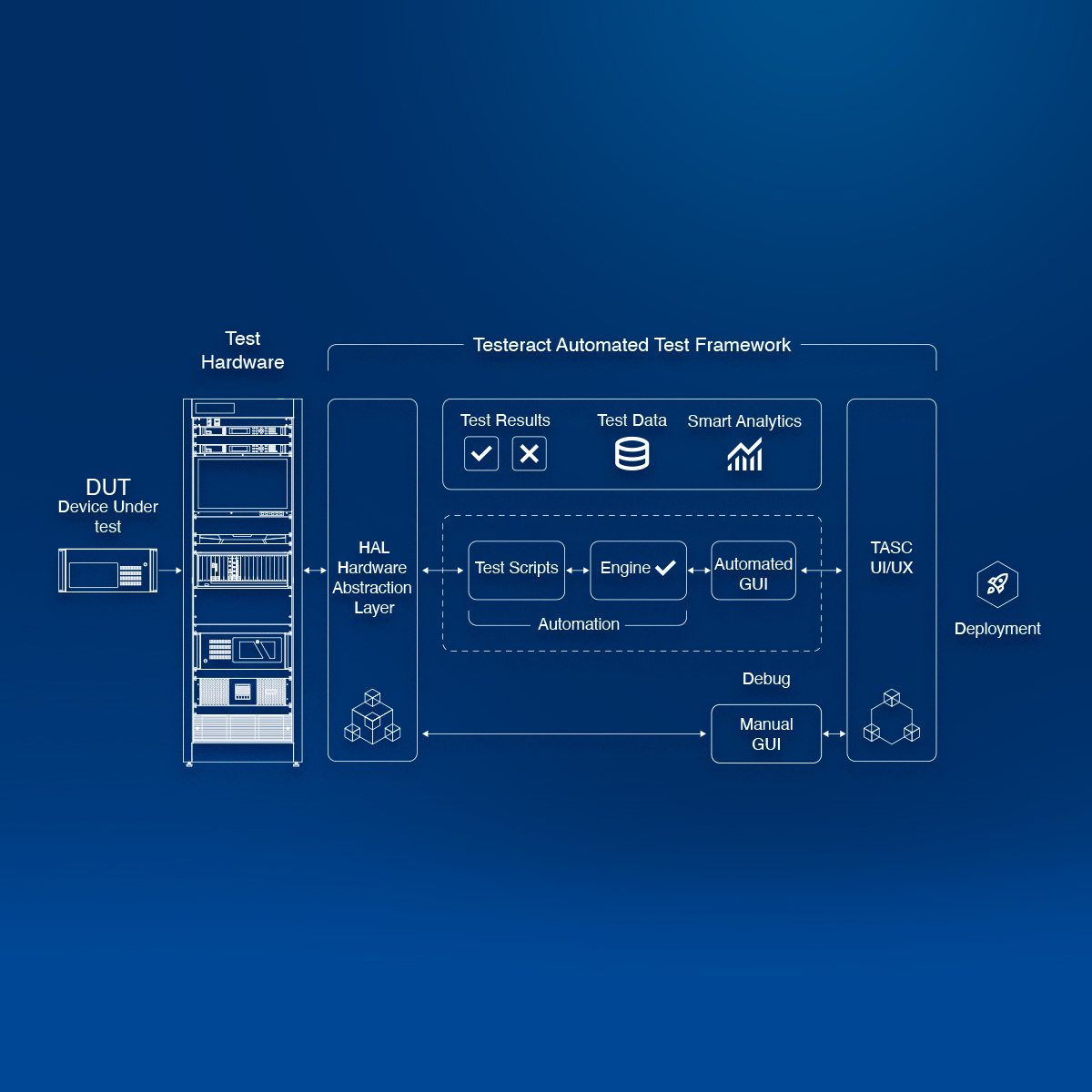

The RF CORE 360 Test Software is the intelligent backbone of the CORE 360 platform — transforming powerful test hardware into a unified, automated, and data-driven test ecosystem. Designed from the ground up for speed, reliability, and modular scalability, it empowers engineering and production teams to execute complex test sequences with confidence and efficiency. Built on a robust and proven framework, the RF CORE 360 Test Software combines advanced test control, flexible integration, and intuitive user experience to deliver accurate results — faster than ever before.

Key Features:

  • Robust Framework – Developed for reliability and high performance, ensuring stable operation in demanding test environments.
  • Modular Deployment – Add or scale software modules as your requirements grow — from early design validation to full-scale manufacturing.
  • Maintainable Code Base – Structured, documented, and maintainable code reduces long-term costs and simplifies updates.
  • Customizable Interfaces – Tailor user interfaces for engineers, operators, or technicians, optimizing ease of use at every level.
  • Comprehensive Reporting & Data Management – Integrated database logging, report generation, and traceability ensure complete test documentation and compliance.

Powered by decades of test automation expertise, the RF CORE 360 Test Software integrates seamlessly with instruments from industry leaders such as Rohde & Schwarz, Keysight, and National Instruments (Emerson). Whether used in R&D, validation, or production environments, it’s engineered to deliver smarter automation, faster results, and long-term reliability — at every stage of your product lifecycle.

Flexible Hardware &
Interface Options

The CORE 360 Platform is built for adaptability — giving you the flexibility to configure systems that precisely match your testing requirements today and effortlessly scale for tomorrow. Whether you’re validating prototypes or executing high-volume production tests, CORE 360’s comprehensive hardware suite ensures full coverage across devices, parameters, and performance metrics.

By leveraging Commercial Off-the-Shelf (COTS) instrumentation, CORE 360 combines proven technology with open integration — empowering you to select the equipment that best fits your application, budget, and performance needs without proprietary restrictions.

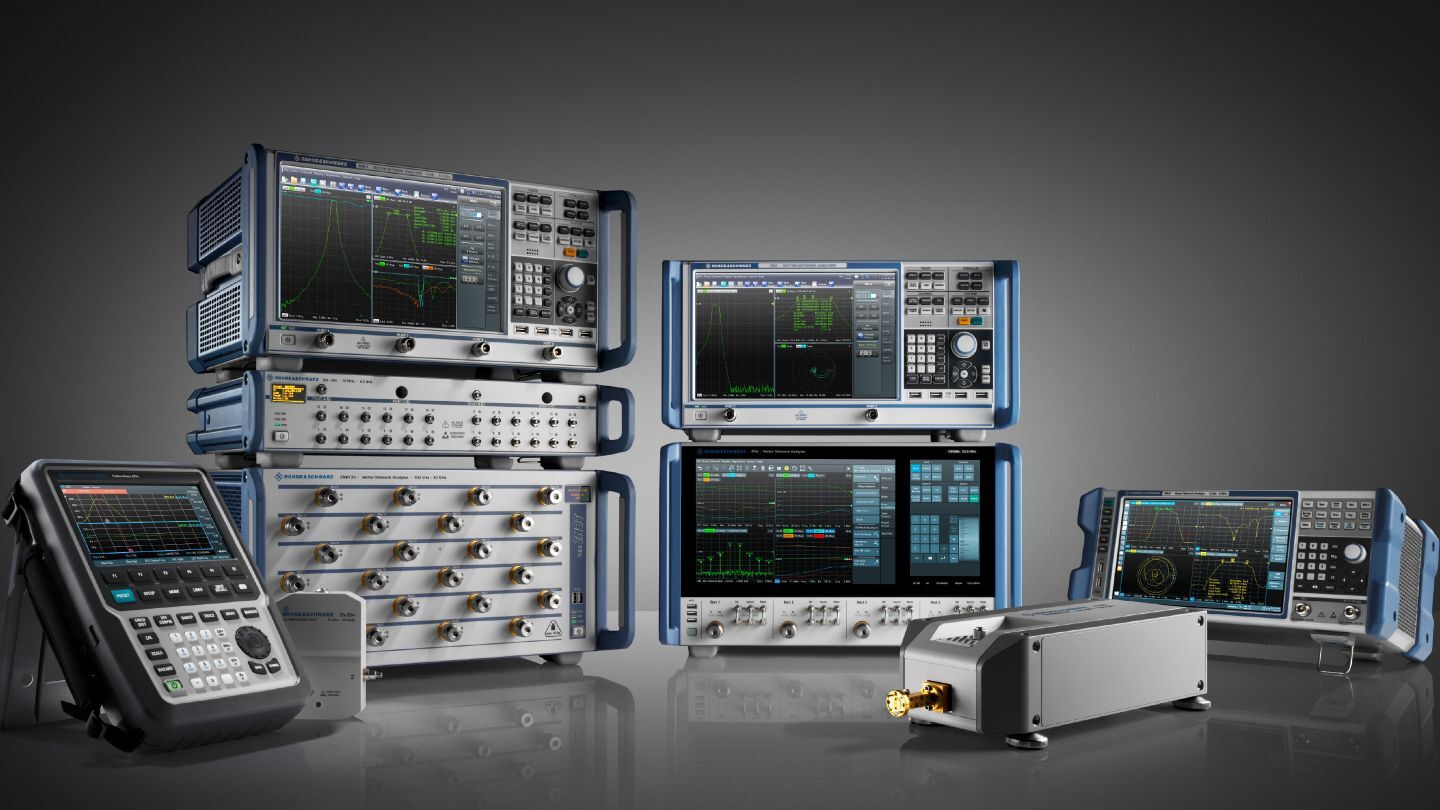

Test Equipment Options (COTS): Choose from industry-standard instruments and measurement systems for maximum performance and interoperability:

  • Vector Network Analyzer (VNA)
  • Vector Signal Generator (VSG)
  • Vector Signal Analyzer (VSA)
  • RF Power Meter & Attenuator
  • RF Switching System
  • DC Power Supply
  • Oscilloscope

Test Interface & Fixture Options: CORE 360 offers a wide variety of test interface solutions that simplify system integration and enhance repeatability — all designed for modularity and maintainability:

  • Custom Test Panels
  • COTS Mass Interconnects
  • DUT Holding Fixtures
  • Self-Test ITAs
  • DUT-Specific ITAs

With CORE 360, you’re never locked into a single configuration. From component selection to fixture integration, every element of your test environment is modular, reconfigurable, and future-ready—delivering measurable ROI in both development efficiency and operational flexibility.

Validate Every Aspect of
Your RF Device

The CORE 360 Platform delivers comprehensive validation capability for the full spectrum of RF devices — from early design verification through production test and field maintenance. Whether you’re characterizing a low-noise amplifier or validating a frequency converter, CORE 360’s integrated test suite ensures complete coverage across devices, parameters, and performance metrics — all within a single, scalable architecture.

Key Test Categories: CORE 360 supports a wide range of RF components and subsystem types, ensuring no aspect of performance goes unverified.

  • Active Devices: Power Amplifiers, Low Noise Amplifiers (LNAs)
  • Conversion Devices: Mixers, Up/Down Converters, FrequencyMultipliers, and Dividers
  • Frequency Devices: Oscillators, Filters, Attenuators, Switches, and Isolators

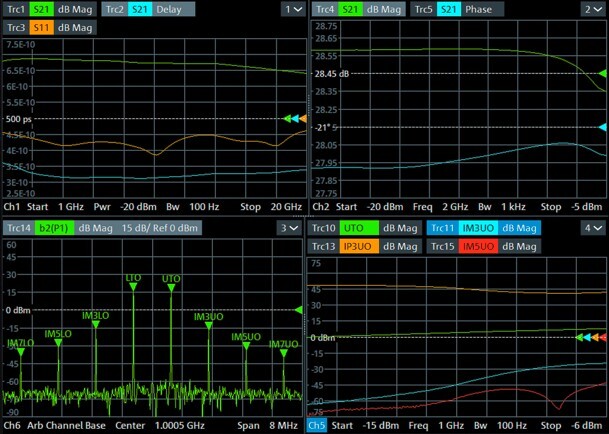

Comprehensive Measurement Capabilities:
Each CORE 360 system is equipped with a robust suite of measurement functions that deliver precise, repeatable results for every stage of RF validation:

  • S-Parameters (S11, S21, S12, S22
  • Gain, Flatness, & Compression (P1dB)
  • Noise Figure (NF)
  • IMD & 3rd-Order Intercept (IP3)
  • Phase Noise (Absolute & Additive)
  • Harmonics & Spurious Emissions
  • Output Power & Frequency Accuracy
  • DC Voltage, Current, & Transient Response

With CORE 360, you can confidently measure, verify, and optimize every parameter that defines RF performance. The result? Higher-quality devices, faster validation cycles, and reduced engineering overhead— all from a unified, future-ready test platform.

Services That Support Your
Entire Test Lifecycle

At TSS, we don’t just build exceptional test platforms — we provide the expertise, engineering, and ongoing support to ensure your test operations run smoothly for years to come. From initial planning through deployment and long-term maintenance, our team delivers end-to-end solutions that maximize system uptime, performance, and return on investment.

  • Turnkey Test Systems
  • Build-to-Print Integration
  • Design-to-Spec / Design-to-Need Systems
  • Legacy Test System Upgrades
  • Interface Test Adapters (ITA) & Fixture Design
  • Test Program Set (TPS) Development
  • On-Site Training & Service Contracts

Consulting & Engineering Services:
Our consulting team offers technical depth and project management expertise to complement your in-house resources — helping you move from concept to execution with confidence.

  • Initial Studies & Test Planning
  • Project Management
  • Custom Software Development
  • TestStand & LabVIEW Programming
  • C/C++, Python, & MATLAB Development
  • General Test Consulting

With TSS, you gain more than a vendor — you gain a strategic test partner dedicated to supporting your success from prototype through production and far beyond. Our mission is simple: keep your systems reliable, efficient, and ready for what’s next.

Whether you need a complete turnkey ATE solution or specialized software and integration support, TSS is your partner through every stage of the test lifecycle. Automated Test Equipment (ATE) Services Our ATE services are designed to simplify the complex — integrating the latest test technologies into reliable, maintainable systems tailored to your exact needs.
